linPORTAL Portalroboter mit Linearachsen für die automatisierte Fertigung und Handhabung von Fertiggaragen und Betonfertigteilen.

linPORTAL: Modulare Portalsysteme für Cobots und Industrieroboter

With linPORTAL, a modular gantry system can be individually configured for virtually any application – including steel construction.

MODULAR GANTRY SYSTEMS FOR COBOTS & INDUSTRIAL ROBOTS

Thanks to our special production method, our profiles are ready for delivery in the shortest possible time. As we have thought three-dimensionally from the very beginning, every linPORTAL can be realized within a very short time.

Our portals are ideal for applications with a high payload, but also for very precise applications. As with our linREX, any cobot or small industrial robot and any end-of-arm tool can be used with our linPORTALs.

Even if our linPORTAL comes out of the box, we are also happy to implement special requests - such as a telescopic axis or a special holder - for you.

Our modular gantry systems for cobots and industrial robots offer maximum flexibility and can be individually adapted to your automation application.

Discover our linPORTALs

linPORTAL standard

Our linPORTAL standard is suitable for any conventional cobot. It brings your cobot to the desired position in the shortest possible time. This makes applications such as simultaneous welding on both sides of a component child's play. The linPORTAL is available in a wide range of sizes. Decide according to your requirements whether you need 1 or 2 cross beams, at what height the entire portal should be mounted, how long the basic axes need to be, what span width you need and whether a z-axis is required. As our profiles come out of the box, your gantry will be ready for use within a few weeks. The modular linPORTAL standard gantry system is ideal for cobots and industrial robots and can be individually configured for a wide range of automation applications.

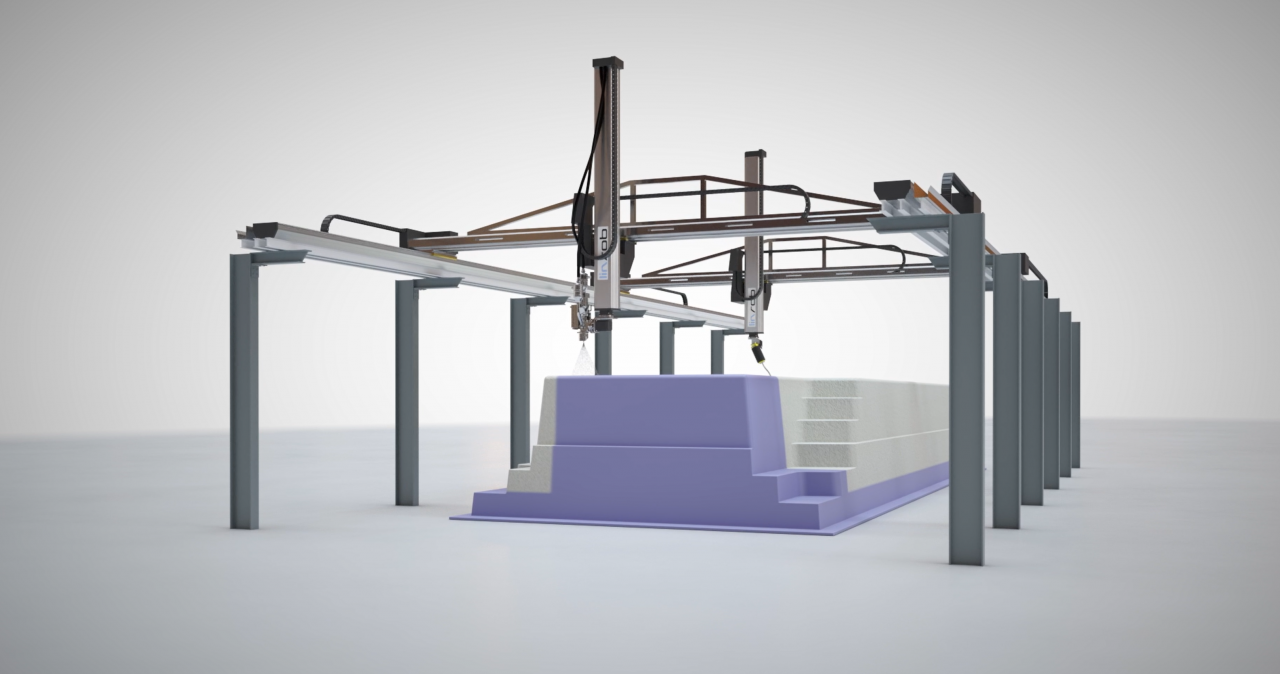

linrob Portalroboter für die automatisierte Bearbeitung und Fertigung von Schwimmbecken, Pools und großformatigen Bauteilen.

linPORTAL double

Our linPORTAL double is ideal for particularly long cross beams and applications with high payloads. The use of our double axis makes your entire system even more stable. This results in considerably less deflection and significantly increases accuracy. Once again, you decide in which dimensions your portal is required. For example, our linPORTAL double is very popular in the construction industry - in the prefabricated garage sector - as we require particularly long cross beams here. The modular linPORTAL double gantry system is designed for high-payload applications with long travel distances and provides maximum rigidity, precision and flexibility for cobots and industrial robots.

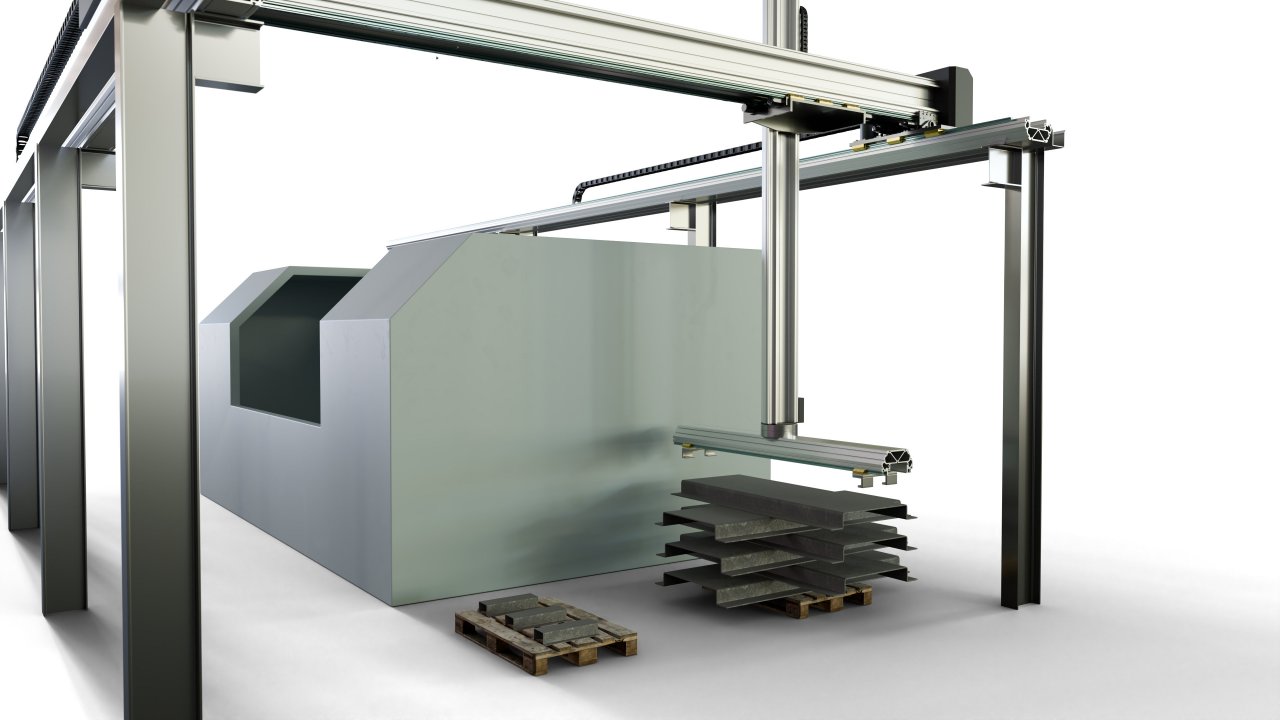

Linearroboter und 7. Achse von linrob für automatisierte Produktions- und Handhabungsprozesse.

Application Areas

WELDING

Simultaneous welding on both sides as easy as conventional cobot welding. To avoid distortion, components often have to be welded simultaneously on two opposite sides. With our linPORTAL featuring two cross beams, this is no longer a challenge. The linPORTAL gantry system enables precise robotic welding of large and heavy components, extending the working range of cobots and industrial robots while improving productivity, weld quality and process reliability.

PLASTERING

Our linear technology can be used to plaster prefabricated garages, for example. These run on a conveyor belt through the linPORTAL, where two y-axes apply plaster and a waterproof coating. The linPORTAL gantry system automates plastering and surface finishing processes for prefabricated concrete elements, improving productivity, process consistency and coating quality while extending the working range of cobots and industrial robots.

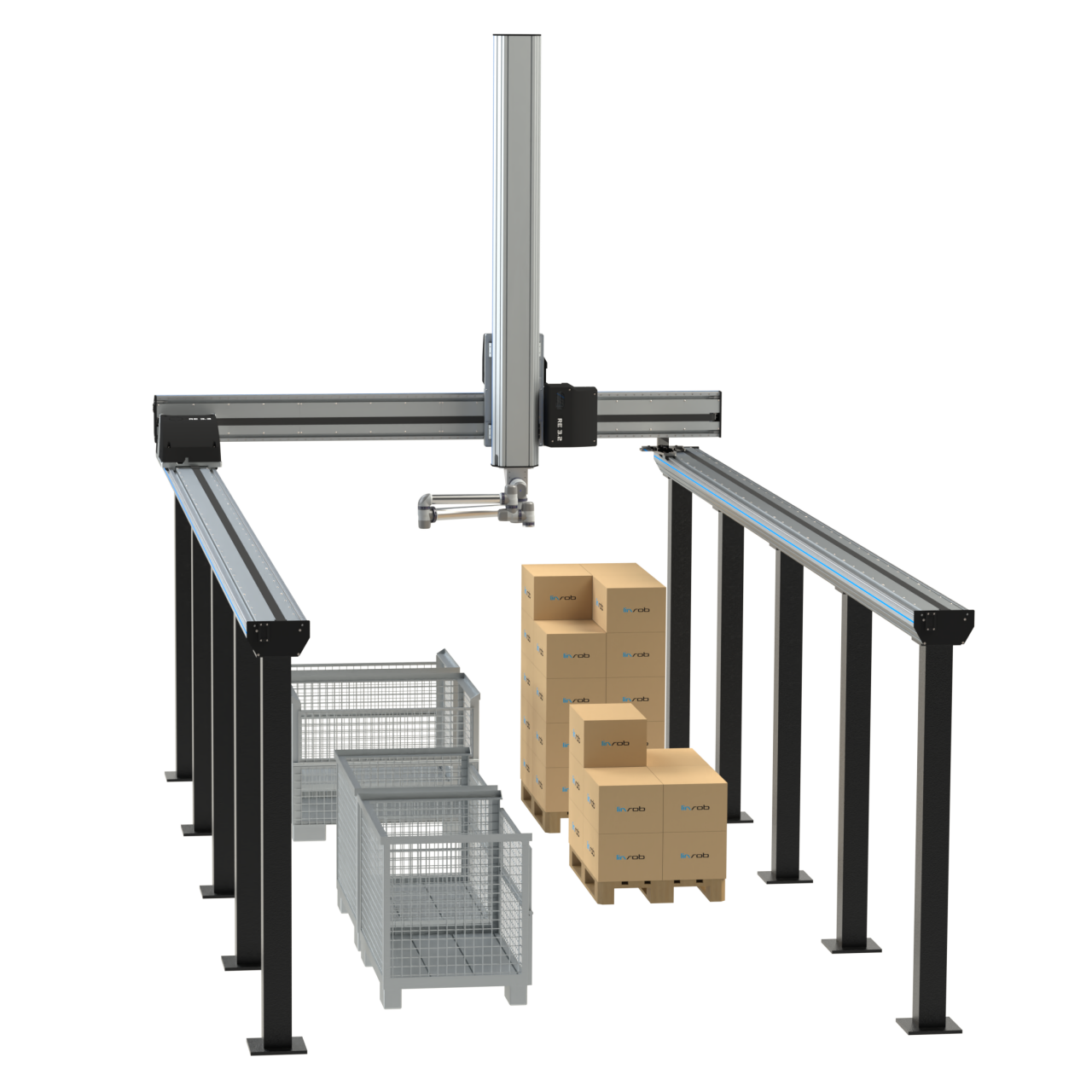

linrob Portalrobotersystem für automatisierte Kommissionierung, Pick-and-Place und Materialhandling von Kartons und Behältern.

PALLETIZING

Palletizing in the so-called “supermarket” is easier than ever with the help of the linPORTAL. Payloads of up to 500 kg can be handled efficiently. The linPORTAL gantry system enables automated palletizing of heavy products across multiple pallet positions, increasing throughput, reducing manual handling and extending the working range of cobots and industrial robots.

linPORTAL simply better

EASE-OF-USE

Every linPORTAL can be programmed by anyone using all common web browsers and fully integrated apps - such as URCap. A 2nd option is the use of a dedicated control unit. The integrated HMI makes operation and programming extremely convenient. The intuitive software, open interfaces and flexible control options enable fast integration, simple commissioning and efficient operation of cobots and industrial robots in automated production environments.

SEAMLESS INTEGRATION

Linrob fits seamlessly into any of your applications as an intelligent base-of-arm product. Thanks to common interfaces, any robot or cobot can be easily integrated. The modular linPORTAL gantry system supports seamless integration into existing production lines and automation systems, ensuring maximum compatibility with cobots, industrial robots and PLC-controlled manufacturing environments.

SAFETY INTEGRATED

Thanks to the plug-and-play system, the integration of safety sensors is easier than ever. This enables co-working between robots and humans. The integrated safety concept supports safe human-robot collaboration, simplifies compliance with industrial safety requirements and enables reliable operation in automated manufacturing environments.

INFINTIY RANGE

Achieve an application range of up to 80 meters in the basic axis without losing accuracy. Plan each axis exactly according to your needs. The modular linPORTAL gantry system provides long travel distances with high precision, enabling flexible automation solutions for cobots and industrial robots across a wide range of manufacturing applications.

READY-TO-GO

Each portal is delivered ready-to-work within a few weeks. Assembly and commissioning also take place within a few hours. The ready-to-work concept minimizes engineering effort, reduces implementation time and enables fast deployment of modular gantry systems for cobots and industrial robots in automated production environments.

DIGITAL SERVICES

A proof of concept is carried out in advance for each application with the help of a digital twin. Thanks to our FEM calculation, we can always calculate the deflection of the entire system precisely and thus compensate for it on the fly. Digital engineering, simulation and virtual validation reduce project risks, shorten development time and ensure maximum performance and precision for every linPORTAL gantry system.
